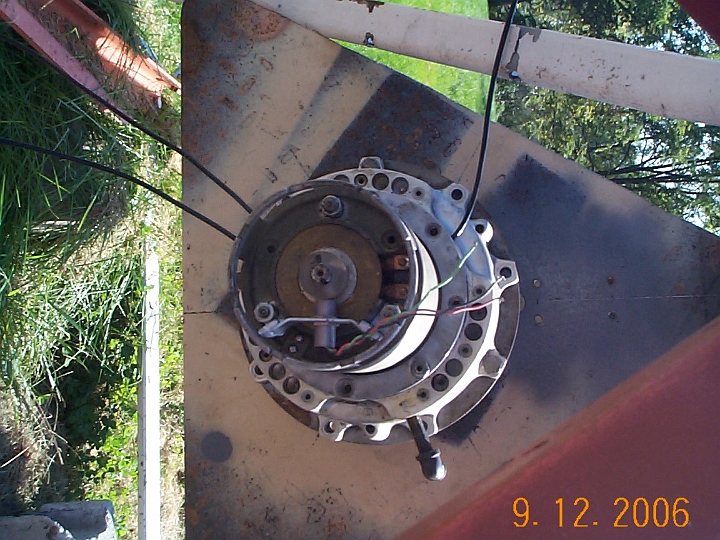

| The motor spins 9500 times for a 360 degree rotation of the mast. I added this Hall effect sensor and will count the pulses in a software defined rotator controller to determine the antenna azimuth. | |
