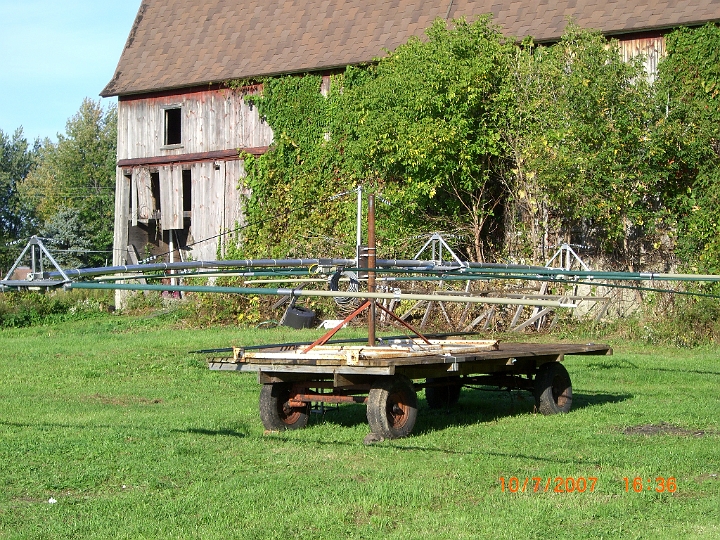

| Here's a half MonStir. The element extensions have yet to be installed. The installation manual makes no mention of it, but at this point you should connect the controller and run the motor check routine to verify that the motors are working correctly. The routine extends the copper tape one element at a time just a couple inches past the fiberglass tubes as shown. If you procede as directed in the installation manual you will install the final telescoping fiberglass tubes and will not be able to see the copper tape! | |
