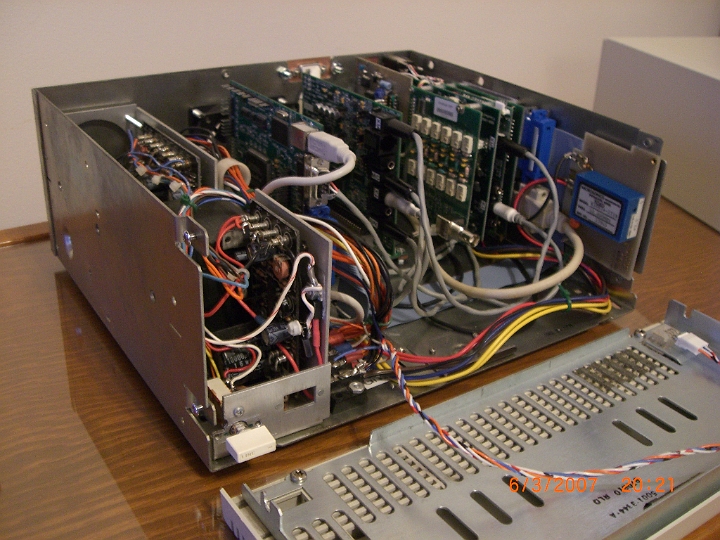

| The front panel is easily removed. I removed the 7805 regulator and the +/-15V switching convertor from the SDR1000 boards. These voltages now come directly from the main power supply. | |
