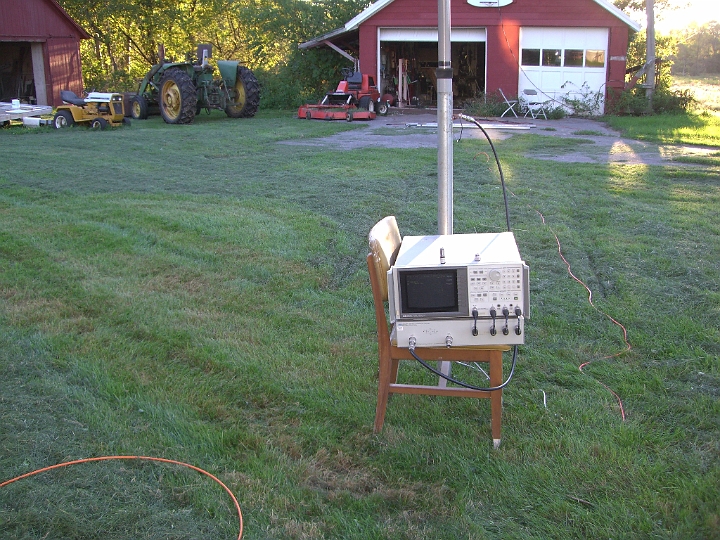

| 21' 5" of #12 copper wire is spiralled along the pole. About one turn per 4 ft. I used a Vector Network Analyzer to measure the antenna Z. Resonance was acheived with 150uH in series at 1.84 MHz. 22 ohms of series R matched 75 ohms 1:1. | |
