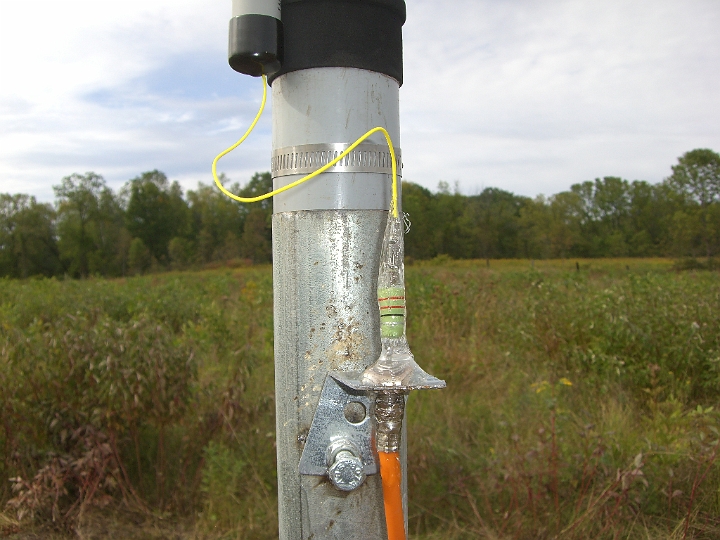

| The 22 ohm resistor brings Z0 up to 75 ohms to match the flooded RG-6 cable. The measured loss of 850' of this cable is 3.85db. No pre-amp needed. | |
