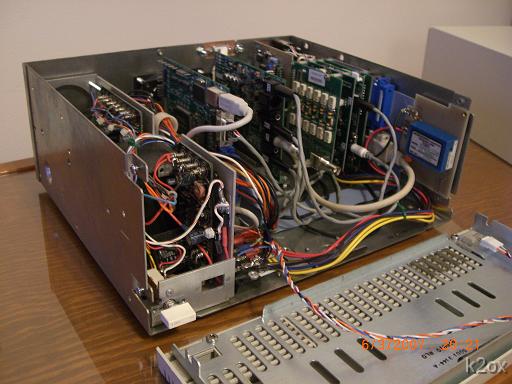

ExhibitPlus CIMG0053 The front panel is easily removed. I removed the 7805 regulator and the +/-15V switching convertor from the SDR1000 boards. These voltages now come directly from the main power supply.
